Long Side

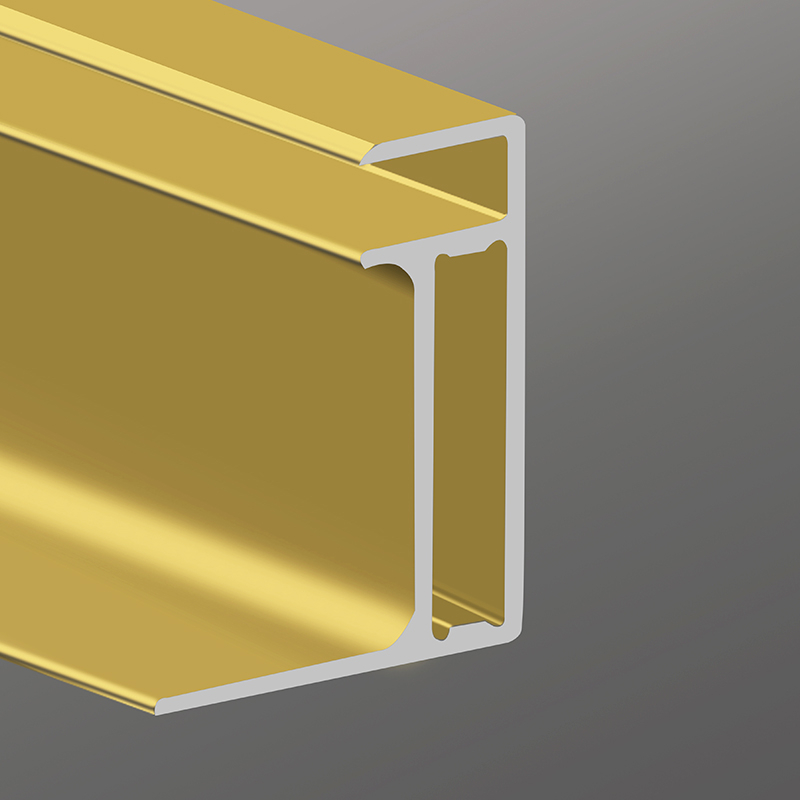

Aluminum solar panel frame for double glass solar panel
● Solar frame model:35*35
● Thickness: 35mm height
● Type: Aluminium frame installed
● Raw material: 6005 aluminum alloy
● Frame section size: 35*35mm
● Slot size: 4.9mm
● MOQ: 500sets
● Color: silver
● Payment terms: TT or L/C
● Common specifications: 2279*1134mm
Short side
Aluminum solar panel frame for double glass solar panel
● Solar frame model: 35*24.5
● Thickness: 35mm height
● Type: Aluminium frame installed
● Raw material: 6005 aluminum alloy
● Frame section size: 35*24.5mm
● Slot size: 4.9 mm
● MOQ: 500sets
● Color: silver
● Payment terms: TT or L/C
● Common specifications: 2279*1134mm
Bracket
Aluminum solar panel frame for double glass solar panel
● Solar frame model: 40*40
● Thickness: 40mm height
● Type: Aluminium frame installed
● Raw material: 6005 aluminum alloy
● Frame section size: 40*40mm
● MOQ: 500sets
● Color: silver
● Payment terms: TT or L/C
● Common specifications: 2279*1134mm
Chemical Composition of Aluminium Alloy:
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al(Min) |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | rest |
6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.4-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | rest |
Mechanical Properties of Aluminium Alloy:
Alloy | Temper | Thickness | T.S./σb (MPa) | Y.S/σ0.2 (MPa) | ELOG./δ% | Hardness/HW |
6063 | T5 | ≥ 0.8 | ≥160 | ≥110 | ≥8 | ≥8 |
6063 | T6 | ≥ 0.8 | ≥205 | ≥180 | ≥8 | ≥10 |
6005 | T5 | ≥ 0.8 | ≥260 | ≥240 | ≥6 | ≥12 |
6005 | T6 | ≥ 0.8 | ≥270 | ≥250 | ≥6 | ≥14 |
All Solar Panel Sizes as Below for Reference:
Power (w) | Number of cells(pcs) | Size of cells(mm) | Solar panel frame size(mm) | Weight (Kg) |
5 | 2*18 | 78*12 | 280x190x17 | 0.7 |
10 | 4*9 | 52*31.2 | 250x350x17 | 1.2 |
20 | 4*9 | 78*39 | 420x360x17 | 2.3 |
30 | 2*18 | 156*26 | 360x550x20 | 2.5 |
40 | 4*9 | 156*39 | 670x420x25 | 3.2 |
50-60 | 4*9 | 156*52 | 540x670x25 | 4.2 |
80-90 | 4*9 | 156*78 | 780x670x30 | 6.6 |
100 | 4*9 | 156*104 | 1000x670x30 | 8 |
110-120 | 4*18 | 156*52 | 1020x670x35 | 8.8 |
130 | 4*9 | 156*117 | 1120x670x35 | 10.5 |
140 | 4*9 | 156*63 | 1200x670x35 | 10.5 |
150-180 | 4*9 | 156.75*156.75 | 1480x670x35 | 12 |
190-200 | 6*12 | 125*125 | 1580x808x35 | 15.5 |
210-230 | 6*8 | 156.75*156.75 | 1320x992x35 | 17 |
250-270 | 6*9 | 156.75*156.75 | 1482x992x40 | 18 |
280-310 | 6*10 | 156.75*156.75 | 1640x992x40 | 18 |
340-380 | 6*12 | 156.75*156.75 | 1956x992x40 | 23 |
460-500 | 8*12 | 156.75*156.75 | 1956x1310x45 | 29 |
