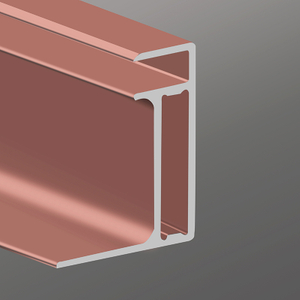

Aluminum Solar Panel Frame (33*28*10)

★ This product is made of 6005-T6 aluminum alloy with excellent mechanical properties
(Tensile strength, Elongation after fracture)
★ The profile adopts anodized sandblasting process, which has strong corrosion and oxidation resistance
★ The long and short sides are pre-riveted to facilitate component installation and save time
★Card slot specification 6.1mm
★ High processing accuracy and stable size
★ Processing length can be customized according to customer requirements
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

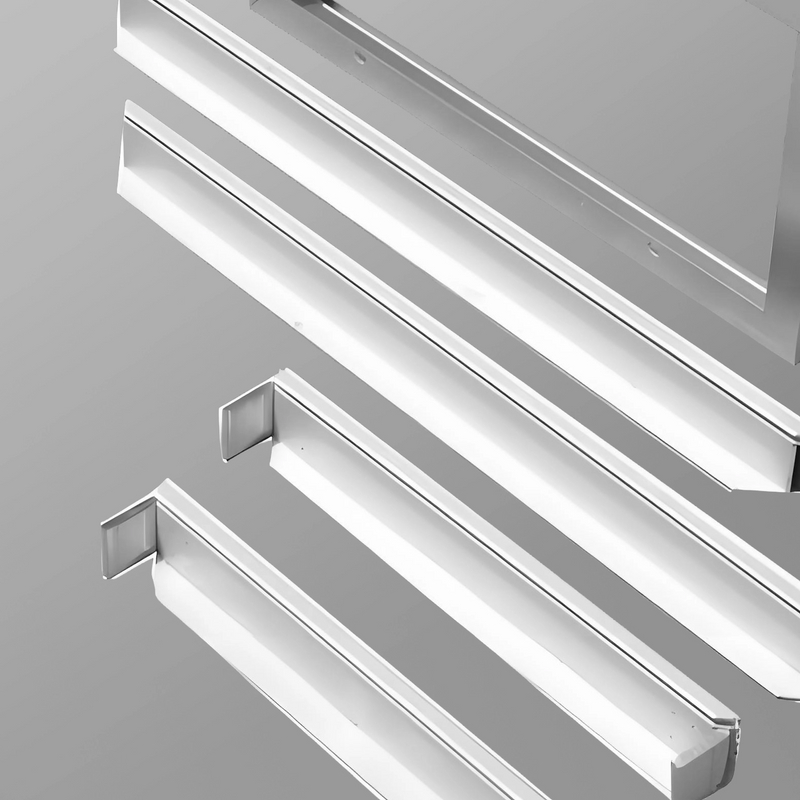

长边


Long Side

Aluminum solar panel frame for double glass solar panel

●  Solar frame model: 33*28

●  Thickness: 33mm height

●  Type: Aluminium frame installed

●  Raw material: 6005 aluminum alloy

●  Frame section size: 33*28mm

●  Slot size: 6.2mm

●  MOQ: 500sets

●  Color: silver

●  Payment terms: TT or L/C

●  Common specifications: 2384*1303mm



短边

Short side

Aluminum solar panel frame for double glass solar panel

●  Solar frame model: 33*10

●  Thickness: 33mm height

●  Type: Aluminium frame installed

●  Raw material: 6005 aluminum alloy

●  Frame section size: 33*10mm

●  Slot size: 6.2mm

●  MOQ: 500sets

●  Color: silver

●  Payment terms: TT or L/C

●  Common specifications: 2384*1303mm



角码

Bracket

Aluminum solar panel frame for double glass solar panel

●  Solar frame model: 40*40*11.9

●  Thickness: 40mm height

●  Type:  Aluminium frame installed

●  Raw material: 6005 aluminum alloy

●  Frame section size: 40*40*11.9mm

●  MOQ: 500sets

●  Color: silver

●  Payment terms: TT or L/C

●  Common specifications: 2384*1303mm

Previous:
Next:
Aluminum Solar Panel Frame (33*28*10) Custom Aluminum Solar Panel Frame 33mm Aluminum Solar Panel Frame Custom Aluminum Alloy Solar Panel Frame Customized Aluminum Extrusion Profile Solar Frame Mounting Rails OEM Solar Panel Frame Aluminum Frame Manufacturer Aluminum Frame Supplier

Related Products

Custom Aluminum Solar Panel Frame
Custom Aluminum Solar Panel Frame
Aluminum Solar Panel Frame (30*23)
Aluminum Solar Panel Frame (30*23)

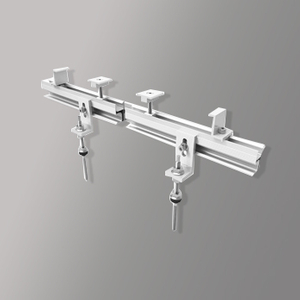

Hanger Bolt Mount CK-IH Series
Hanger Bolt Mount CK-IH Series
Aluminum Solar Panel Frame (35*30*12)
Aluminum Solar Panel Frame (35*30*12)
Tile Roof Mount CK-TR Series
Tile Roof Mount CK-TR Series

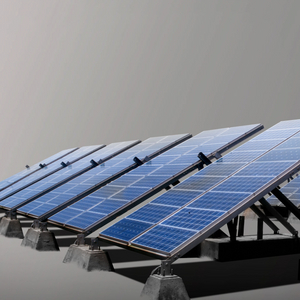

Alu Triangle Mount
